SWR & Power Meter
Homebrew SWR and power meter for antenna performance monitoring.
Description
A homebrew directional coupler-based SWR and power meter. Uses two germanium diode detectors for forward and reflected power measurement. Covers HF bands with a power range of 1–100W.

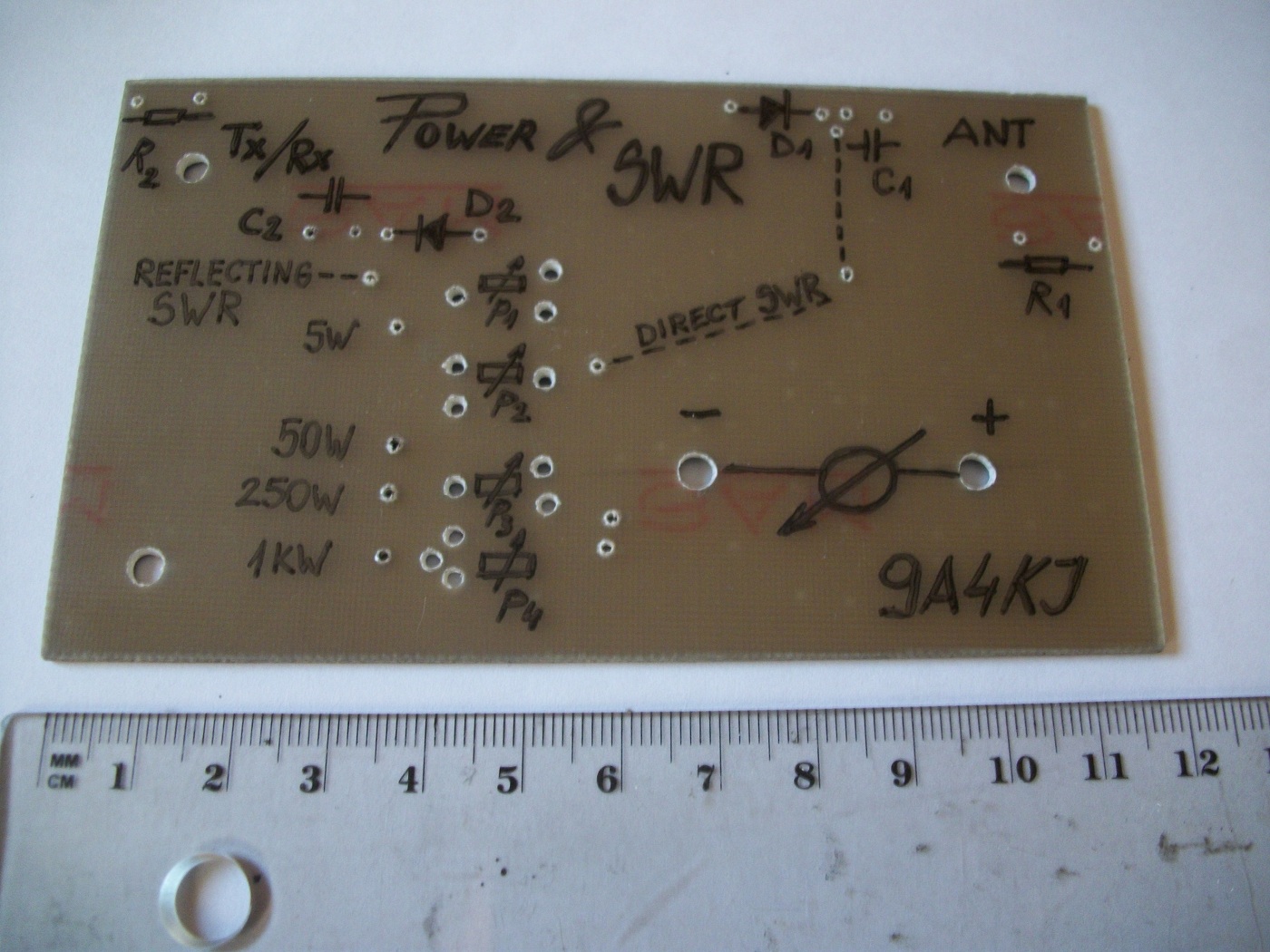

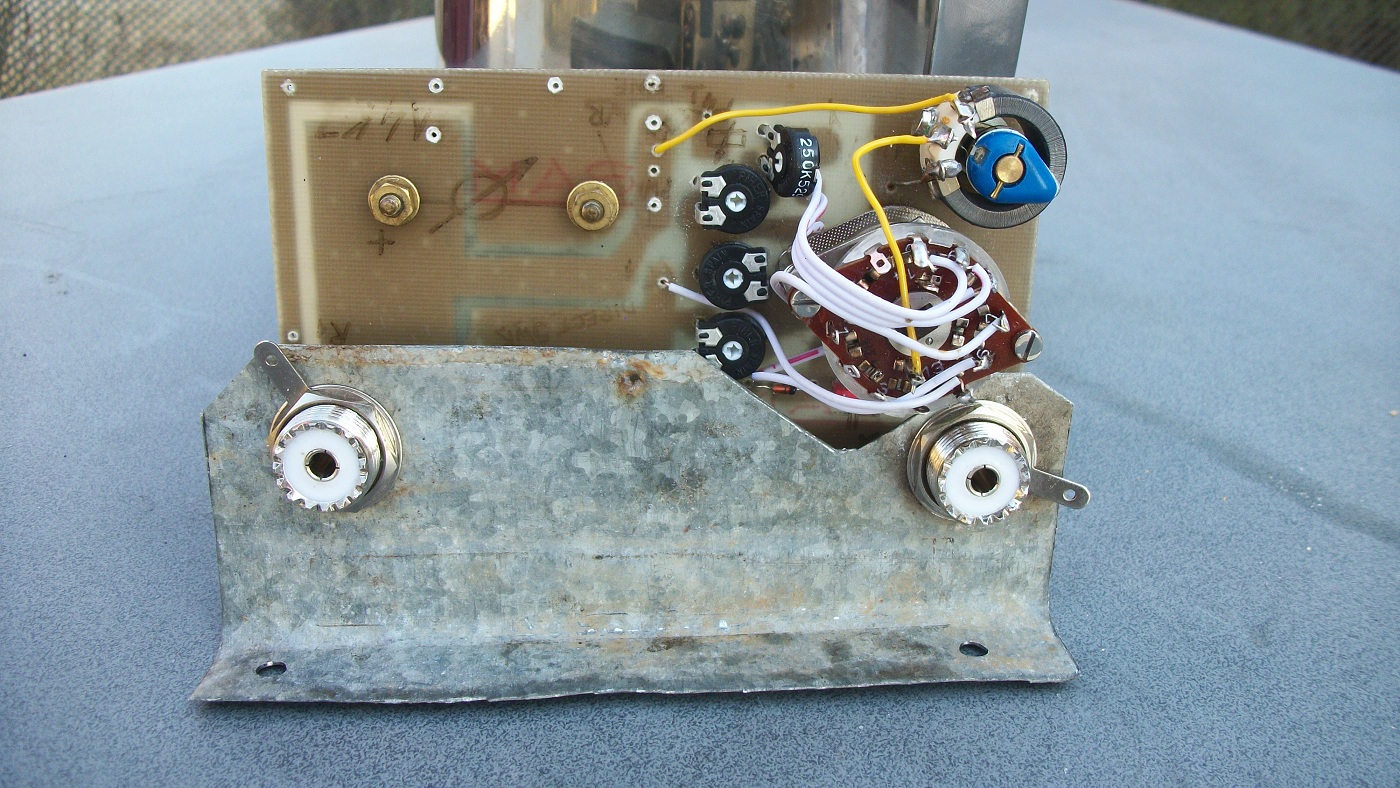

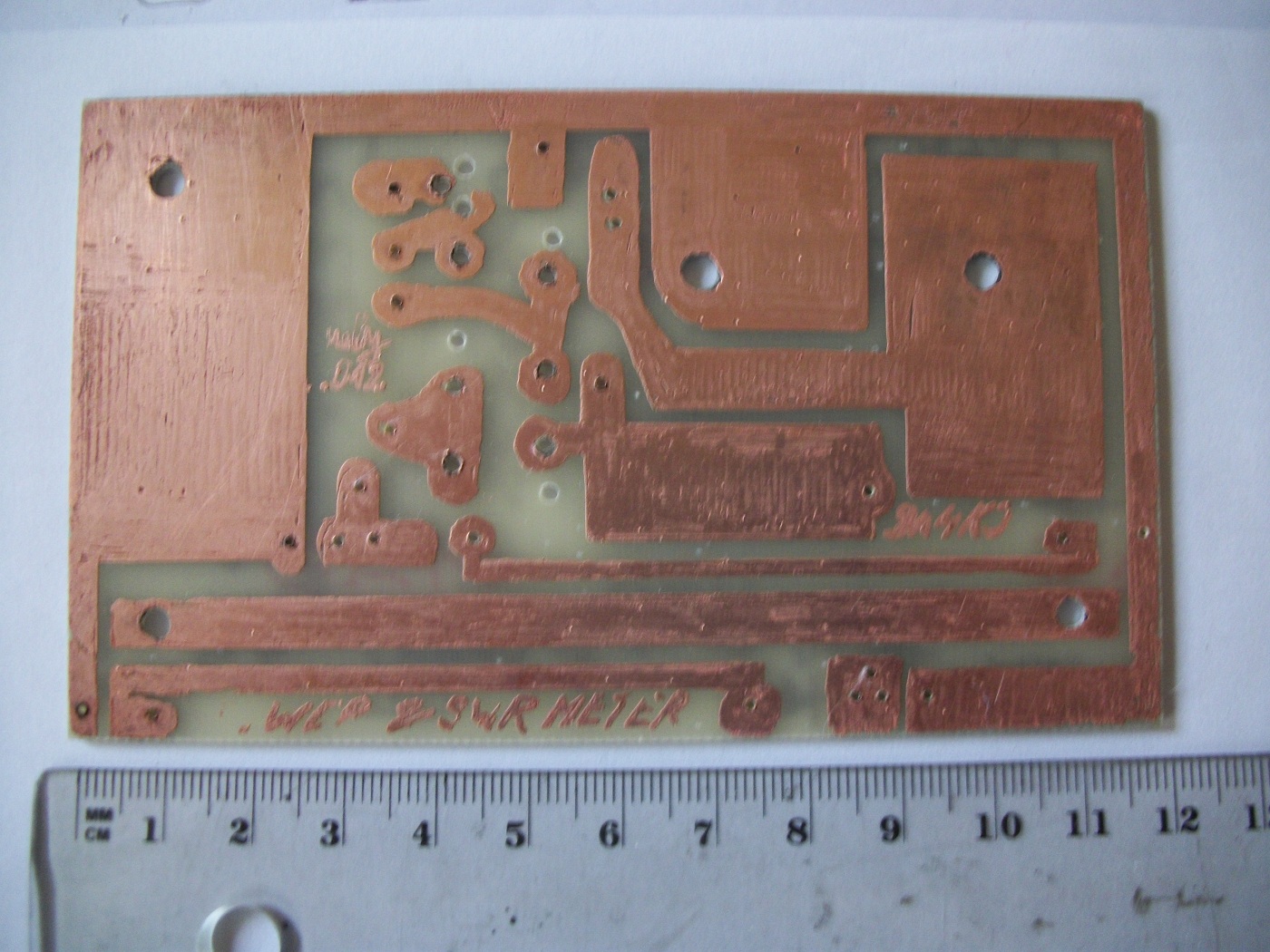

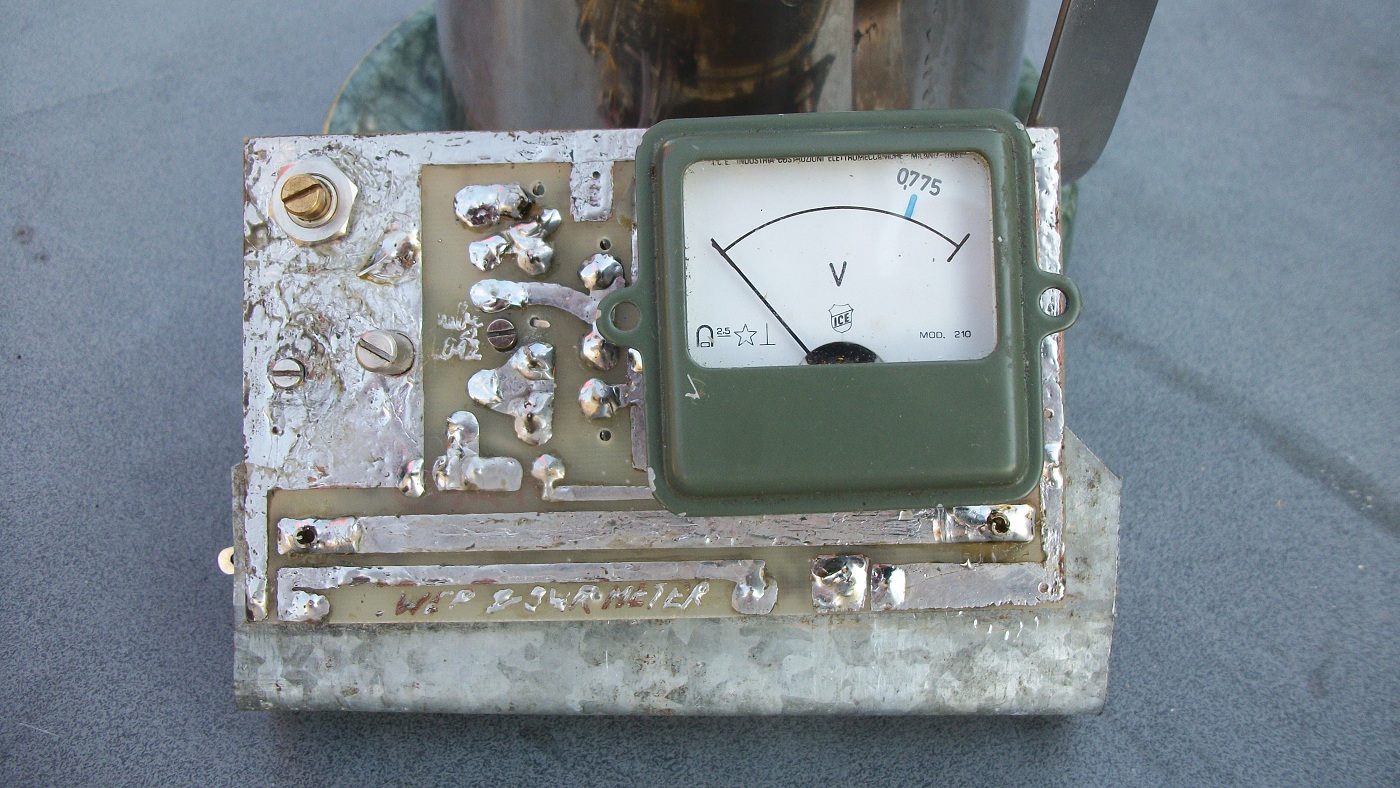

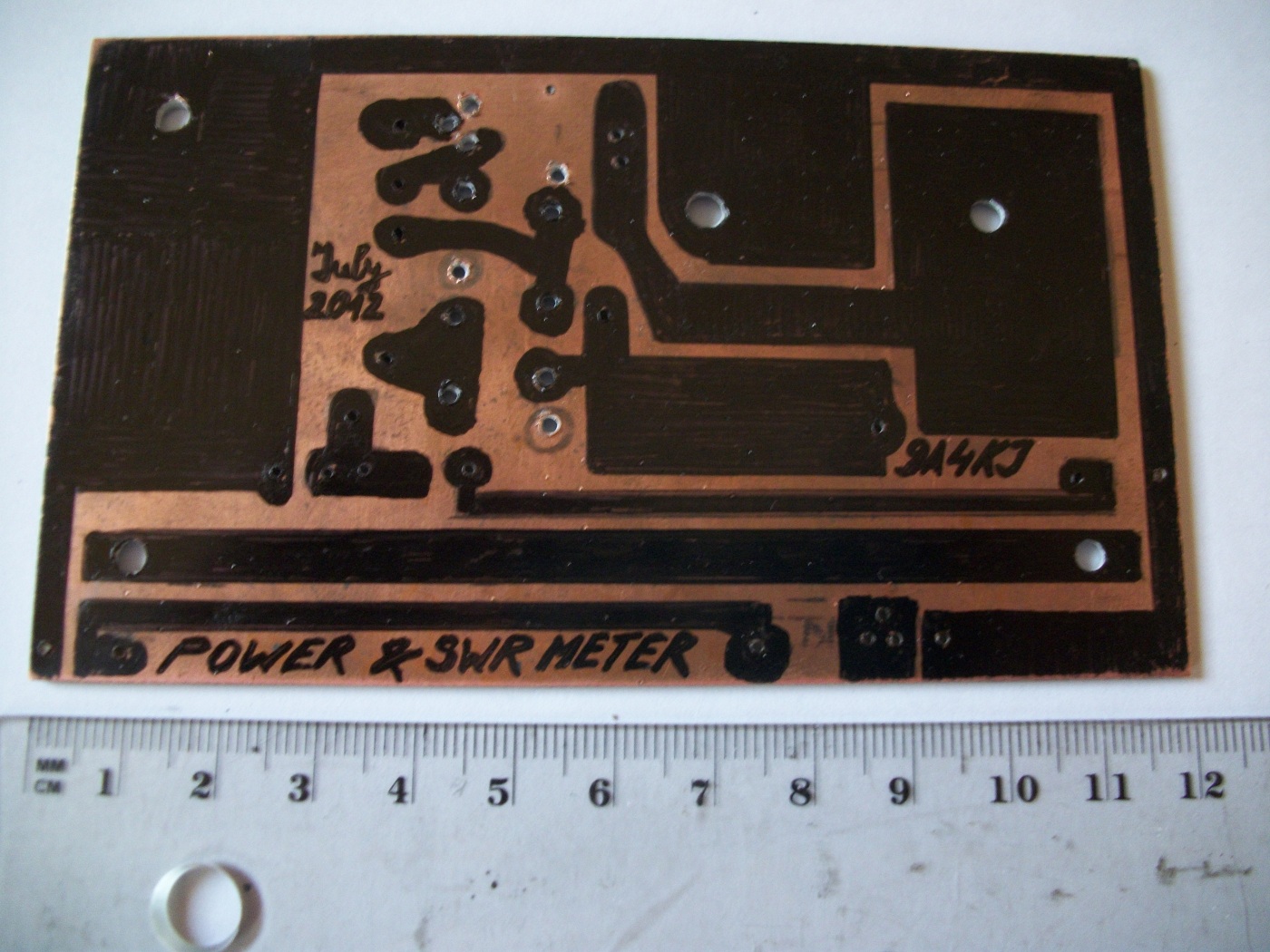

PCB designed in-house, housed in a compact aluminium enclosure.
